The Difference Between Rapier Loom and Air Jet Loom The Difference Between Rapier Loom and Air Jet Loom

It can be distinguished from the edge tissue edge middle twisted edge line:

1) Usually, polyester cotton yarn is a rapier (locking device) and filament is air jet weaving (planetary gear device).
2) Double air-jet fabric, whose one side is thread and the other side is filament. (the middle is the locking device, and the planetary gears on both sides are installed)
3) Rapier double fabric, both sides of the yarn are polyester cotton thread (both are locking device).


It can be distinguished from loom

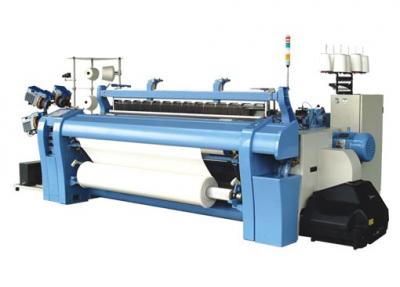

Rapier loom: use rigid or flexible rapier head to clamp and guide weft. In addition to weaving plain and textured fabrics, characteristics of rapier loom is that the color can be changed easily, and it is suitable for multi-color weft fabrics, suitable for the production of yarn dyed fabrics, double-layer velvet fabrics, terry fabrics and decorative fabrics. Air jet loom: to draw the weft with the jet compressed air and bring the weft through the shed. Air jet loom is characterized by fast speed and high labor productivity. It is suitable for plain and textured fabrics, fine and ultra-high density fabrics and bulk fabrics.

Advantages and disadvantages of grey cloth

1. There are many kinds of fine count yarn in grey fabric produced by air-jet loom. Its grade is higher, mainly light and thin fabrics. Generally, the rapier loom produces many kinds of coarse count yarn with low grade, mainly heavy fabric
2. In terms of equipment, the weft insertion of air-jet loom and rapier loom is different.
3. For the same fabric, the cost of raw materials is the same, and the weaving cost is relatively low, such as twill. The maximum speed of air-jet can reach more than 800 revolutions, and the speed of the rapier loom is only about 180-200 revolutions. One person can manage 10-12 sets of arrow pole, while the maximum number of the rapier loom that can be managed is 4-6 sets.

Similarities: it's all burr. They can be of the same specification
Difference: under the premise of the same yarn count and specification

①The weight of the air jet loom is a little lighter.
② Flatness of plain grey cloth of air jet loom is better than that of rapier loom.
③ The fabric shrinkage of air-jet loom will be higher correspondingly.
④ The yarn quality of air-jet loom is better than that of rapier loom.
Related News
  • WSF200A Precision Winder-Hank to Cone

    WSF200A Precision Winder-Hank to Cone

    June 25, 2018Introduction of WSF200A Precision Winder:WSF200A Precision Winder is a kind of hank winding machine and customized precision winder, which is the ideal machine and a perfect solution for yarns that re...view
  • YF168 Twisting Machine

    YF168 Twisting Machine

    June 25, 2018Introduction of YF168 Twisting Machine:YF168 twisting machine is a kind of advanced yarn doubling machine. This thread twisting machine has a numerical electric control system. The system of this thre...view
  • Semi-automatic One Spindle Double Heads Winding Machine

    Semi-automatic One Spindle Double Heads Winding Machine

    June 25, 2018Introduction of Semi-automatic One Spindle Double Head Winding Machine:Semi-automatic One Spindle Double Head Winding Machine is a kind of high speed wire winding machine. This wire winder is applicab...view
  • WSF618B-01 Precision Winder

    WSF618B-01 Precision Winder

    June 25, 2018Introduction of WSF618B-01 Precise Winder:WSF618B-01 Precise Winder is a kind of cone winding machine for winding 20D-600D chemical filament yarns. The appearance of this cone winding machine is elega...view
  • Full Automatic Sewing Thread Winder

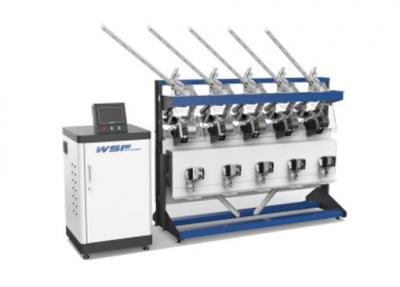

    Full Automatic Sewing Thread Winder
