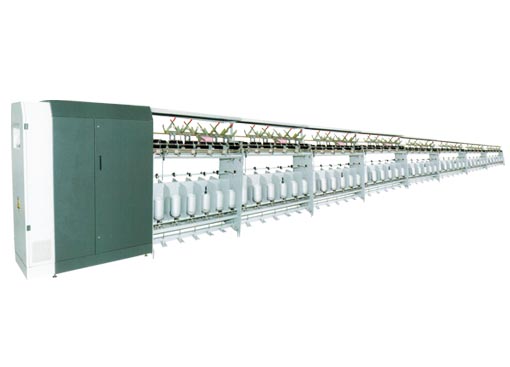

Chemical Fiber Twisting Machine

Introduction of Chemical Fiber Twisting Machine:

Our Chemical Fiber Twisting Machine is used for twisting of variety of chemical fiber yarn. This fiber twister has PLC controls setting, edge precision and stepless adjustable. The chemical fiber twisting machine uses 350mm straight bobbin, and max take-up volume capacity of the fiber twister can be 2 KG. Brand-new design, the use of PLC and servo control system on the chemical fiber twisting machine, not only save the energy of the equipment greatly, but also make the product Very Easy for Warping. The chemical fiber twisting machine improves the yarn quality observably. With low energy and high yarn quality, the chemical fiber twisting machine is the last advanced twisted machine for the world.

Chemical Fiber Twisting Machine calculation:

Yarn speed (m/min) = [Spindle speed(r/min) x2]/ [No. of twists (T/m)]
Production = [Yarn speed x working time (minute) x No. of spindles x Efficiency]/ [Nm (metric count) x 1000]
Nm (metric count) = Ne(count) x 1.6934
Example: Cotton (Ne60S/2), 800T/M, 11000r/min, 200 Spindles
Yarn speed = 1100 x 2 / 800 = 27.5 (m/min)
Production = [ 27.5 x 24h x 60m x 200S x 0.98]/[(60S/2=30) x 1.6934 x 1000] = 152.78 kg/Day

Servo Technology of Chemical Fiber Twisting Machine:

The servo drive system uses 3 independent motors to drive respectively:
Main motor: spindles; Slave motor: take-up rollers; Servo motor: traverse.

Parameters of Chemical Fiber Twisting Machine:

Spindle Qty.: 256
Spindle Distance: 225 MM
Normal Spindle Speed: 8000-14000 RPM
Spindle Driving Mode: Belt Circulatory Driving
Spindle Fixture Mode: Magnetic Fixture
Twisting Range: 60-3000 T/M
Twisting Direction: S or Z
Feed Bobbin Size: L240-350*Φ42*Φ110
Take-up Bobbin Size: Φ160*Φ89*L165*L173
Start Model: Y-Δ Slowly Start
Control Mode: PLC
Setting Model: Computerized Setting
Tensioner: Ball Tensioner & Washer Tensioner
Take-up Tensioner: Adjust the Yarn Angle in the Roller
Winding Angle: Stepless Adjustable
Take-up Type: Servo Motor
Main Motor Power: 5.5 KW*2
Size (L*W*H) MM: 16410*750*1895
