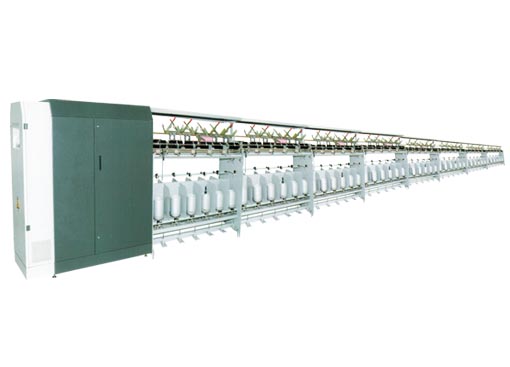

YF168 Twisting Machine

Introduction of YF168 Twisting Machine:

YF168 twisting machine is a kind of advanced yarn doubling machine. This thread twisting machine has a numerical electric control system. The system of this thread twisting machine makes the machine automatic control. This thread twisting machine can meet clients’ requirement of single spindle and large package. The twister machine has wide application of processing materials. This yarn doubling machine apply for all kinds of coarse yarn, such as polyamide, blended yarn with wool and cotton, glass fiber and so on.

YF168 twisting machine has an electrical control system. It controls the spindles, winding and yarn guiding mechanism with high-accuracy. The system on thread twisting machine can set and monitor the main technical parameters such as spindle speed and twist on the panel. Servo-motor on the thread twisting machine drive the yarn guide traverse. By direct connecting of flexible coupling and ball screw and positive inversion of motor, the thread twisting machine can guarantee the positioning accuracy and the traverse motion of guide rod.

Features of YF168 Twisting Machine:

>> Modular machine design
>> PLC program precisely controlled electronic anti-fold, avoid overlapping yarn, and improve efficiency, after retirement solution
1) Touch screen to set the process parameters, improve production efficiency.
2) Traverse servo actuator, winding forming good.
3) Compact design, can reduce the area more than 10%.

Technical Parameters of YF168 Twisting Machine:

For raw materials: Monofilament 100D~1000D and Twisted wire 300D~2000D
Solutions retreat cheese: (Φ54~110）X(190~300) There are side tube, length 230,290mm
The number of sections: ≤10
Tenser: Ball, capsule
Twist (T/M): 100~2000
Starting method: Delta slow start
Twist: S or Z
Operation form: Double-sided single, lead wires lead yarn
Up speed: ≤60m/min
Spindle Transmission: Long tangential belt drive
Rated power: 14.7KW
Loading amount: 2-5kg
Winding brass: Φ54~70 L230、290mm

Variations technical parameters of YF168 Twisting Machine:

Spindle gauge: 290mm or 330mm or 365mm or 405mm
Each section spindles: 16 or 12 or 12 or 10
Dimension (10): 25610X730X1656 22330X730X1656 24230X830X1656 22580X830X1656
Spindle speed: 5000-10000rpm
