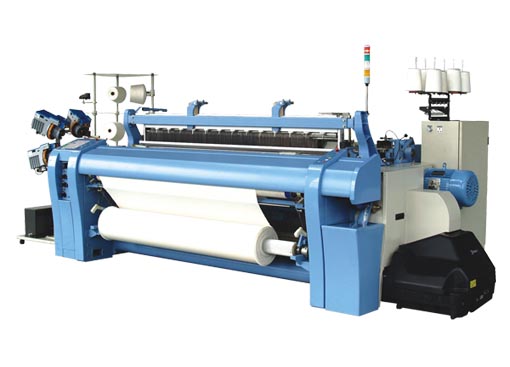

RW150 Air Jet Loom

Introduction of RW150 Air Jet Looms:

RW150 Air Jet Looms are designed for high speed. The air jet weaving looms can weave high quality fabric with lower cost, to realize the maximization of investment gains, to guarantee winning victory in the keen market competition market competition.

Strong frame structure of RW150 Air Jet Looms:

The robust frame structure of the air jet looms mainly composed of a strong box frame on both sides and beams, intermediate rocking supporters, which parts of the air jet weaving looms ensure the stable running and vibration resistance, also they ensure low noise and less vibration even at high speed on the wide loom.

Optimum designed link beating motion:

A 4-link beating motion that works excellently at ultra-high speed and a short connecting rod are used for standard air jet weaving looms. A 6-link beating motion with more time allowance for filling insertion is used for wider air jet looms, thus achieving more stable filling insertion.

Driving, rush start motor:

The rush start system of the air jet looms delivers high-power torque at starting, enabling increased beating power for first pick, eliminating stop marks, and contributing to high quality production.

Parameters of RW150 Air Jet Looms:

Reed space: 150
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
