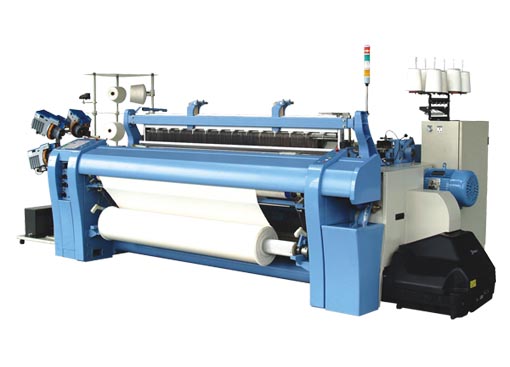

RW190 Air Jet Loom

Introduction of RW 190 Air Jet Loom:

RW 190 Air Jet Loom is advanced designed using computer streamline analysis to provide stable insertion of weft yarns and reduced air consumption. This air jet loom weaving machine is equipped with new permanent-magnet motor weft accumulator.

New permanent-magnet motor weft accumulator:

New High-Speed Solenoid Pin of RW 190 Air Jet Loom: The new pin of this air jet loom weaving machine is highly reliable even during high-speed operation and also allows one wrap release for enhanced operation. Electric weft accumulator with speed control, the rotational ratio of each electric weft accumulator on this air jet loom weaving machine can be set independently to minimize the changes in rotation, effectively preventing weft yarn breaks. When used with the optional electric drum pooling with weft separation, stable weft insertion can be achieved on this air jet loom weaving machine even when weaving multi-colored fabric with complex patterns.

Parameters of RW 190 Air Jet Loom:

Reed space: 190
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
