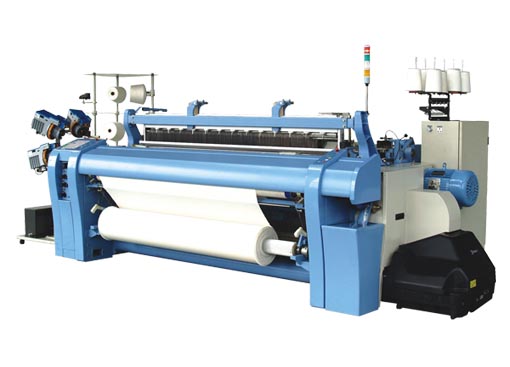

RW340 Air Jet Loom

Introduction of RW 340 Air Jet Loom:

RW 340 Air Jet Loom is a kind of advanced weaving machine loom. This weaving machine loom has double beam and twin beam. Individual servomotors for the upper and lower beams on the 340 air jet loom are provided for weaving fabrics with different types of warp yarn. And the twin beam on the 340 air jet loom can be equipped with individual servomotors for the right and left beams, assuring uniform weaving quality for wide fabrics.

RW 340 Air Jet Loom has computer control system. This weaving machine loom is equipped with the international first-class electronics technology, enhances automatic setting functions for more detailed and easier operation. Conditions to control weaving are set automatically.
The control system on the 340 air jet loom is equipped with the advanced technology: DSP/CPLD/servo and brushless DC motor control technology, CANBUS communication technology, they improve the stability and intelligent level, ensure loom running with super reliability and performance. All setting is operated on the big color touch screen, storage or transfer duplicate is easy through digital memory card.

Parameters of RW340 Air Jet Loom:

Reed space: 340
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
