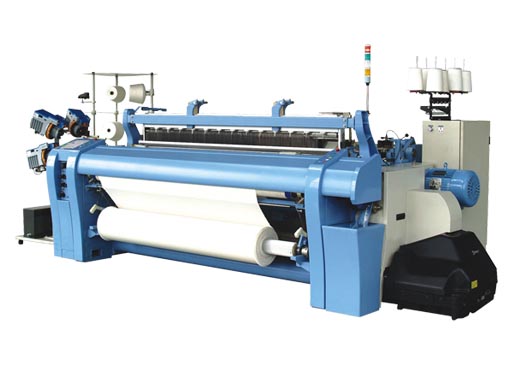

RW230 Air Jet Loom

Introduction of RW 230 Air Jet Loom:

RW 230 air jet loom is a kind of advanced air jet weaving loom machine. This air jet weaving loom machine is equipped with new permanent-magnet motor weft accumulator. The RW 230 air jet loom can weave high quality fabric with lower cost, to realize the maximization of investment gains, to guarantee winning victory in the keen market competition market competition.

New solenoid valve:

We have successfully developed a high-performance solenoid valve of 230 air jet loom with a smaller size and quicker response, with eliminate waste in air consumption and can support short-pitch sub nozzles. The 65mm short-pitch sub nozzles of this 230 air jet weaving loom machine ensure the successful weft insertion even if at low pressure.

Stretch nozzle:

This device of this 230 air jet weaving loom machine stretches the weft yarn at the right selvage edge to reduce the air volume required by the sub nozzles. It is also effective in preventing slack filling that can occur when weaving filament yarns.

Parameters of RW 230 Air Jet Loom:

Reed space: 230
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
